Description
SPECIFICATIONS:

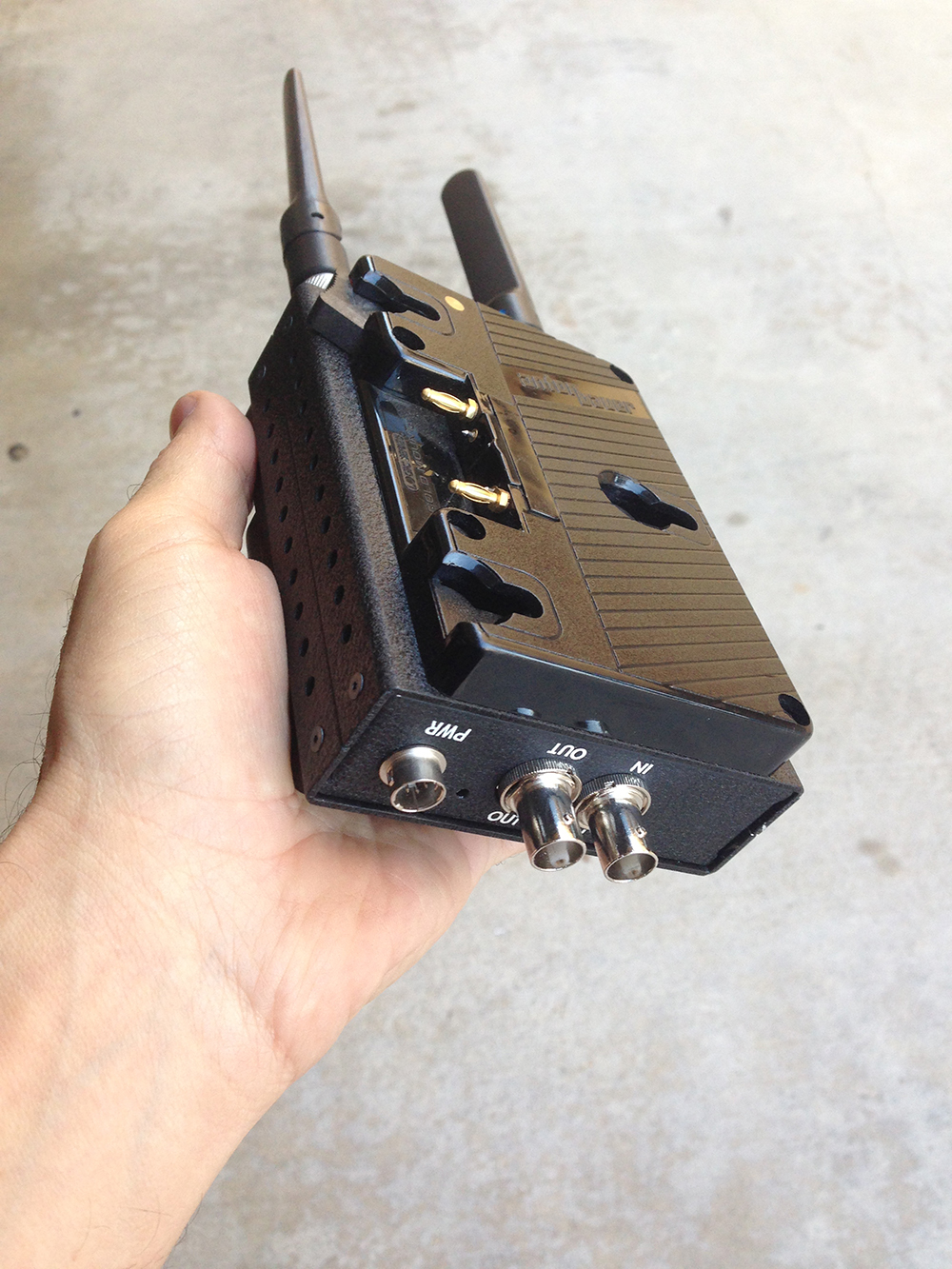

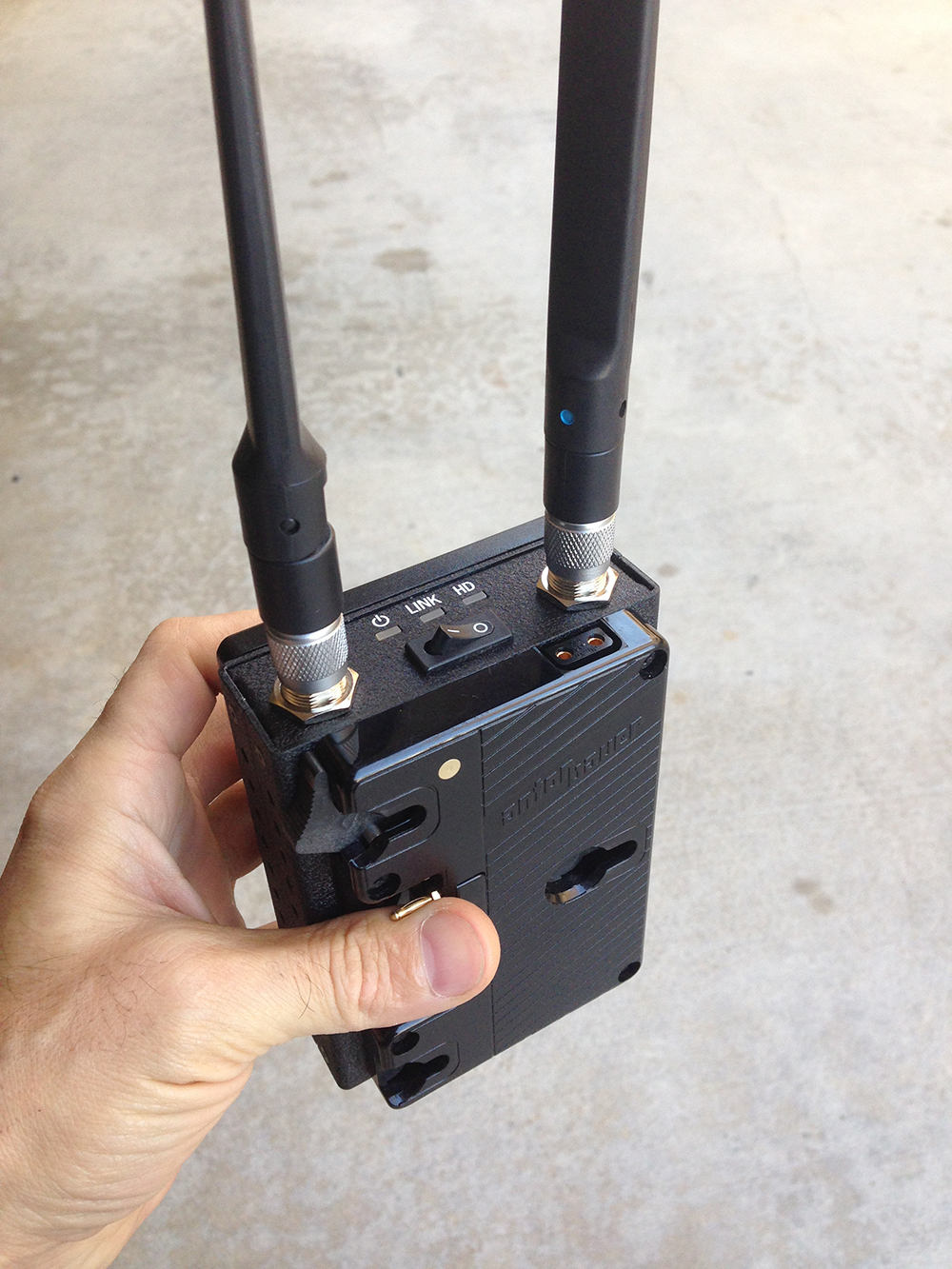

HD-SDI TRANSMITTER
• HD-SDI INPUT: Auto Detects 3G-SDI, HD-SDI or SDI
• INPUT FORMATS: 480i/59.94, 567i/50
1080i/60,1080i/59.94,1080i/50,1080psf/30,1080psf/29.97,1080psf/25,1080psf/24
1080psf/23.98, 1080p/30,1080p/29.97,1080p/25,1080p/24,1080p/23.97,720p/60,720p/59.94,720p/50
1080p/60(Picture only), 1080p/59.94(picture only), 1080p/50(picture only)
• HD-SDI OUTPUT: 3G/HD/SD-SDI Active Loop-Through Output
• ANTENNA INPUTS: 2 X TNC CONNECTORS
• ANTENNAS: 2 x 3.5 Db Antennas
• POWER INPUT: 6 Pin, Mail HIROSE Connector
HIROSE pin out:
Pin #1 Ground
Pin #3 +12v input
Pin #5 +24v input
• UNIT DIMENSIONS: 3.15"(80mm) x 3.9"(100mm) x 1.5"(38mm)
• WEIGHT: 13.7oz (390g)
• LATENCY: 80 millisecond
• TIME CODE: Embedded Time Code
• RANGE: 1.5 Mile Line Of Sight and 1500 Ft non L:ine of Sight.
• CHANNELS: 10 channels, Automatic select.
• Male and Female Anton Bauer Plates

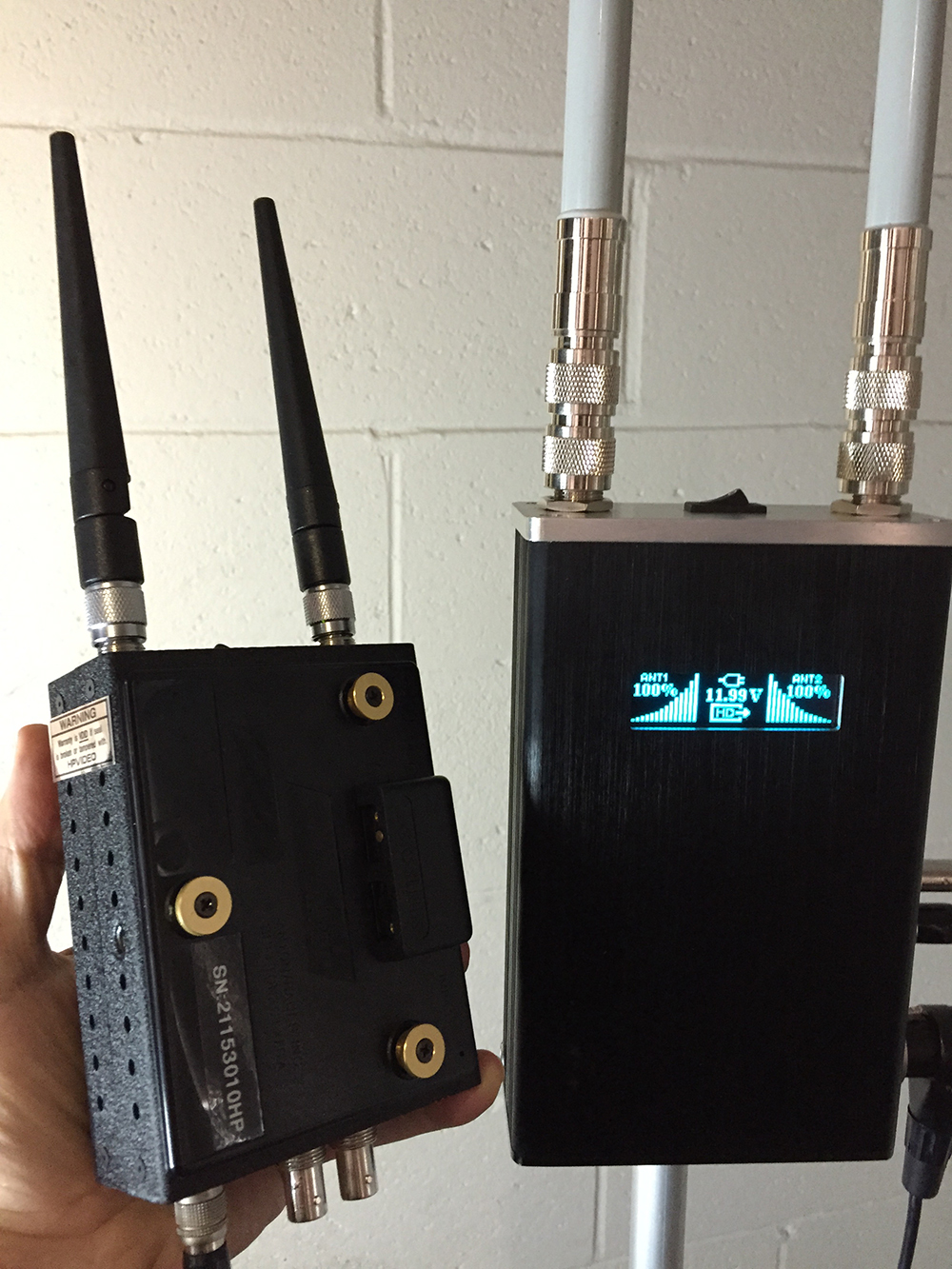

HD-SDI RECEIVER:
• ANTENNA INPUTS: 2 X TNC Type Connectors
• POWER INPUT: 4 PIN XLR connector. Input voltage 12v DC, 1.7Amp.
Auto switching from DC input to Battery power.
• HD-SDI OUTPUT: 2 x BNC Connectors. Output Signal Formats are:
480i/59.94, 567i/50, 1080i/60, 1080i/59.94, 1080i/50
1080p/30, 1080p/29.97, 1080p/25, 1080p/24, 1080p/23.97,
720p/60, 720p/59.94, 720p/50,1080p/60(Picture only), 1080p/59.94(picture only), 1080p/50(picture only).
• CHANNELS: 10 channels, Automatic select.
• LATENCY: 80 millisecond
• RANGE: 1.5 Mile Line Of Sight and 1500 Ft non L:ine of Sight.
• Receiver Dimensions (without antennas): 6"X 4"X 2"
• This System is a Multi CAST Wireless System.
