HP1007 (Ver. 3)

Non Line Of Sight, Long Range, Low Latency, HD-SDI Wireless Handheld Monitor Systems
Price:
Description

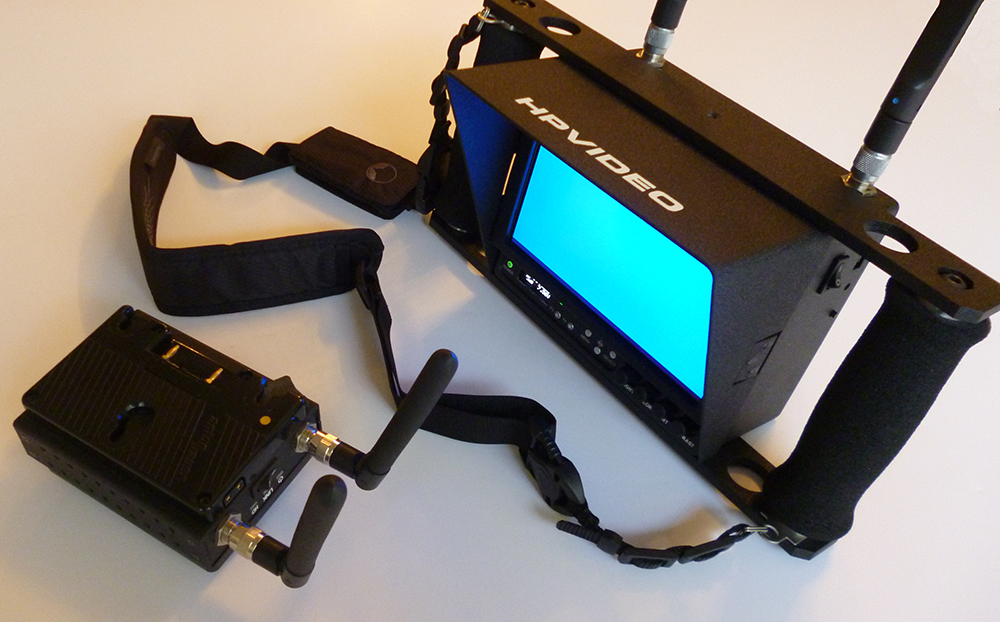

HPVIDEO HDSDI WIRELESS HANDHELD MONITOR AND TRANSMITTER SYSTEM (Ver. 3)

Price  $5000.00

SPECIFICATIONS:

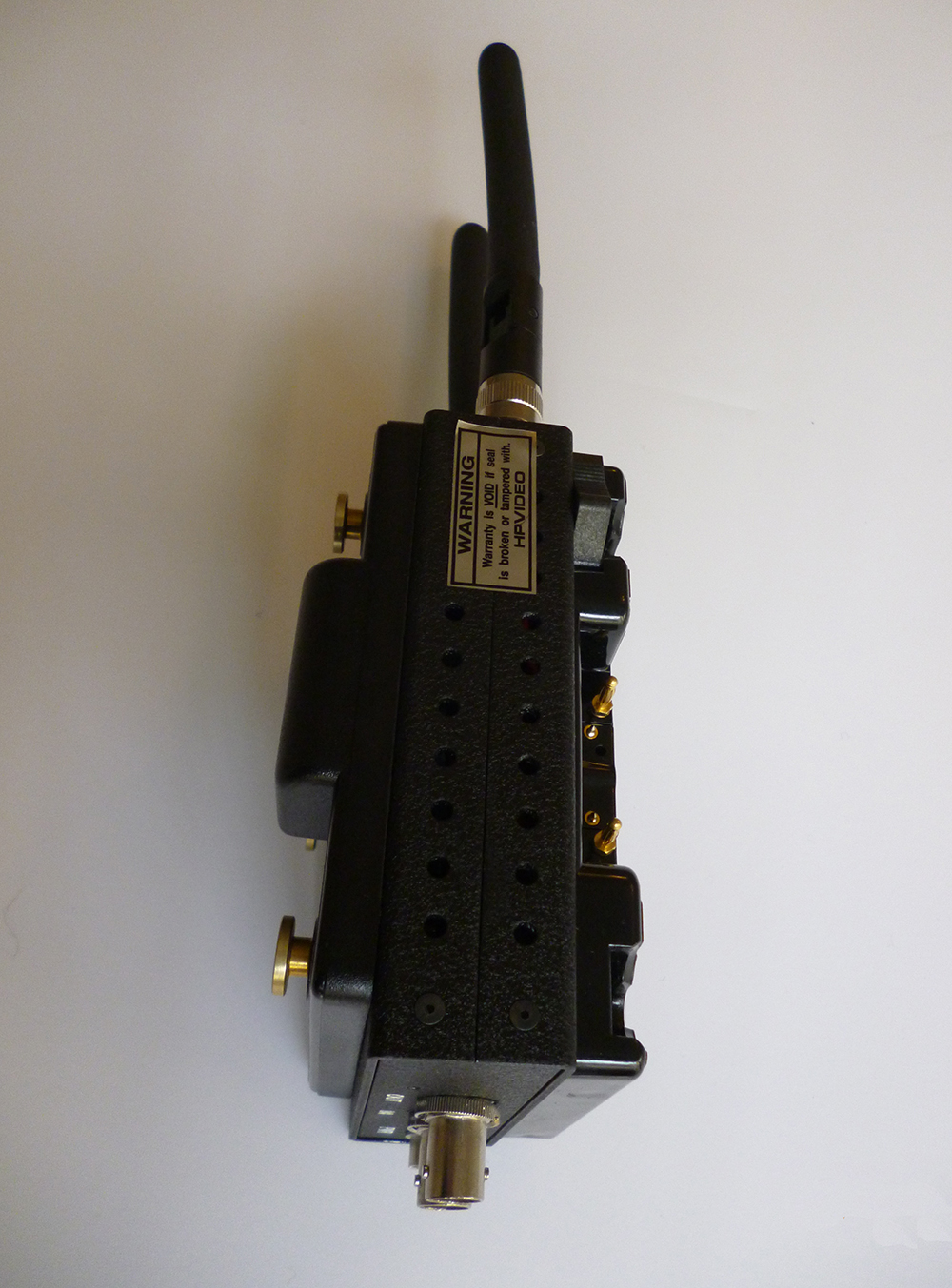

HD-SDI TRANSMITTER

•  HD-SDI INPUT: Auto detects 3G-SDI, HD-SDI or SDI
•  INPUT FORMATS: 480i/59.94, 567i/50
   1080i/60,1080i/59.94,1080i/50,1080psf/30,1080psf/29.97,1080psf/25,1080psf/24
   1080psf/23.98, 1080p/30,1080p/29.97,1080p/25,1080p/24,1080p/23.97,720p/60,720p/59.94,720p/50
   1080p/60(Picture only), 1080p/59.94(picture only), 1080p/50(picture only)
•  HD-SDI OUTPUT: 3G/HD/SD-SDI Active Loop-Through Output
•  ANTENNA INPUTS: 2 X TNC CONNECTORS
•  ANTENNAS: 2 x 3.5 Db Antennas
•  POWER INPUT: 6 Pin, Mail HIROSE Connector (LIKE MODULUS2000/3000).
   Modulus2000/3000 power cables works with it.Input DC voltage is 5v to 26v,600mA
   HIROSE pin out: Pin #1 Ground
                           Pin #3 +12v input
                           Pin #5 +24v input
•  UNIT DIMENSIONS: 3.15"(80mm) x 3.9"(100mm) x 1.5"(38mm)
•  WEIGHT: 13.7oz (390g)
•  LATENCY: < 90 millisecond
•  RANGE: 1 Mile Line Of Sight and 1500 Ft in door.
•  CHANNELS: 10 channels, Automatic select.
•  Male and Female Anton Bauer Battery Plats

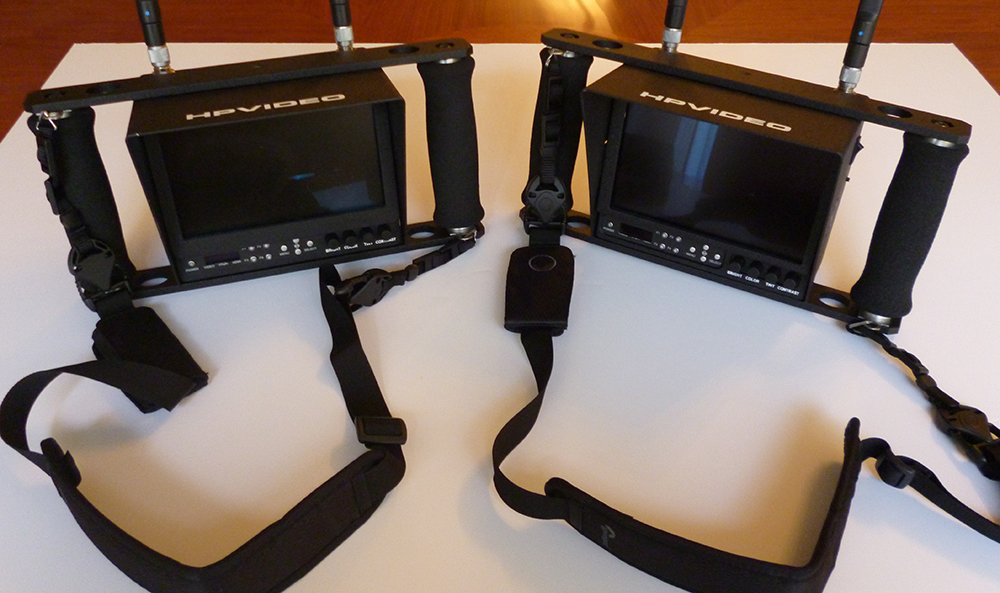

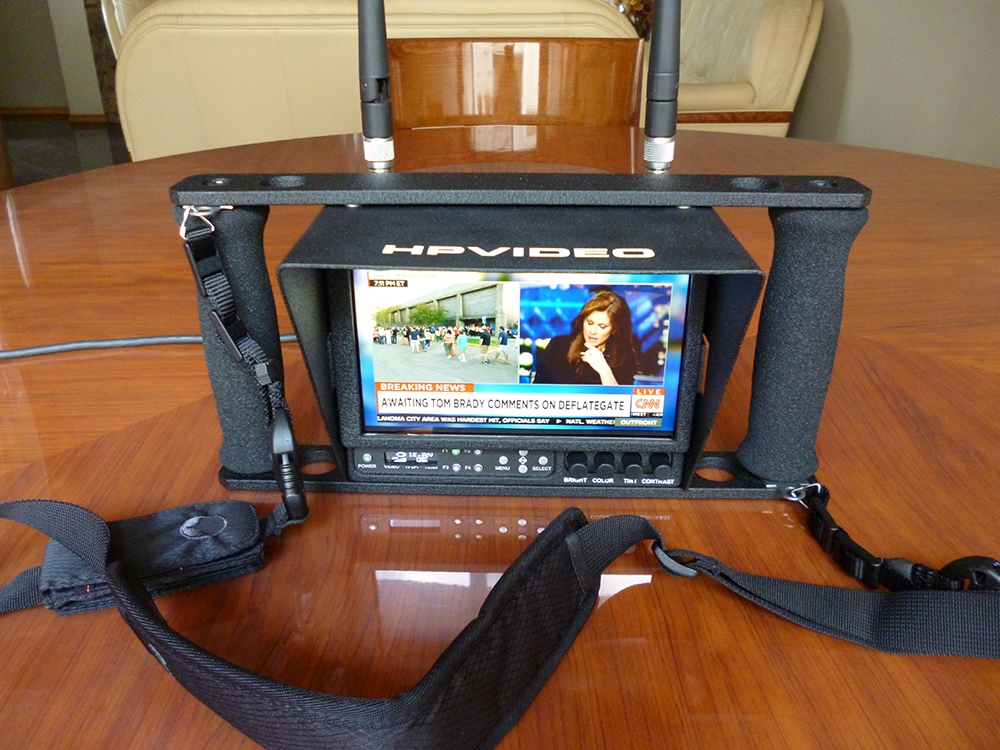

  WIRELESS HANDHELD MONITOR

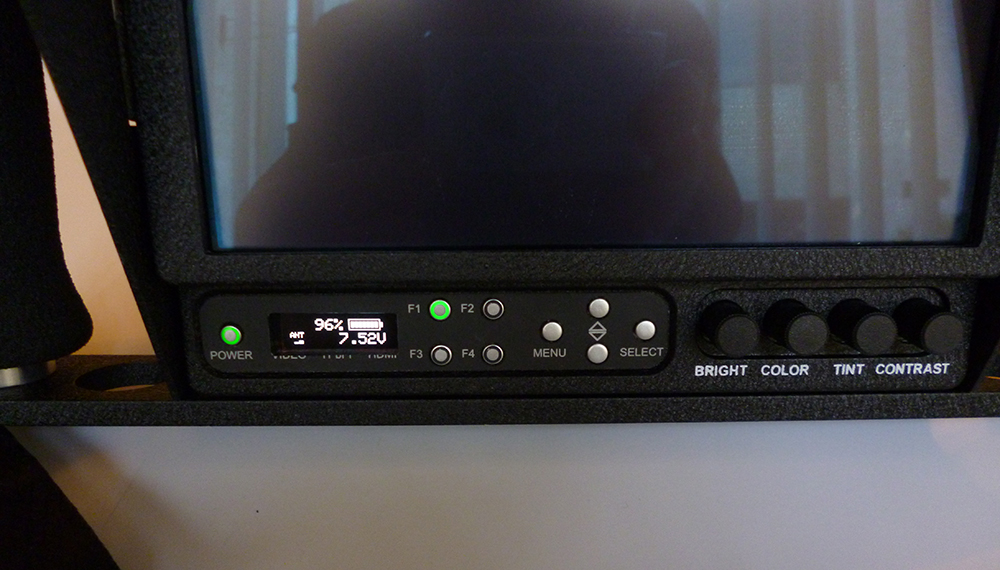

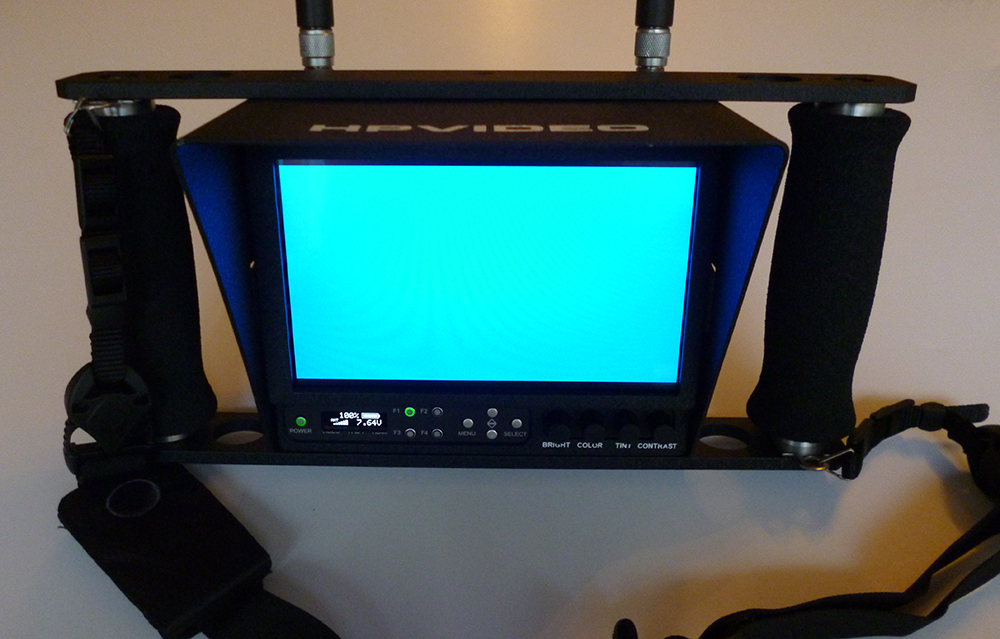

•  MONITOR: 7" LCD Screen
   High resolution 800 x 480 LCD panel
   Manual Gamma Adjustment
   Adjustable Back light
   Image Flip
   Variety of Markers, including user-adjustable)
   False Color On/Off
   Peaking Filter On/Off
   RGB Check Field / Field Detect
   15:9, 16:9, 4:3, Pixel-to-Pixel modes
   4 user-configurable function buttons
   Scratch Resistant Protective Screen
   RGB gain and bias control
•  ANTENNA INPUTS: TNC CONNECTORS
•  POWER INPUT: 4 PIN XLR connector. Input voltage is 9v to 38v DC, 1.7Amp.
   Auto switching from   DC  input to Battery power.

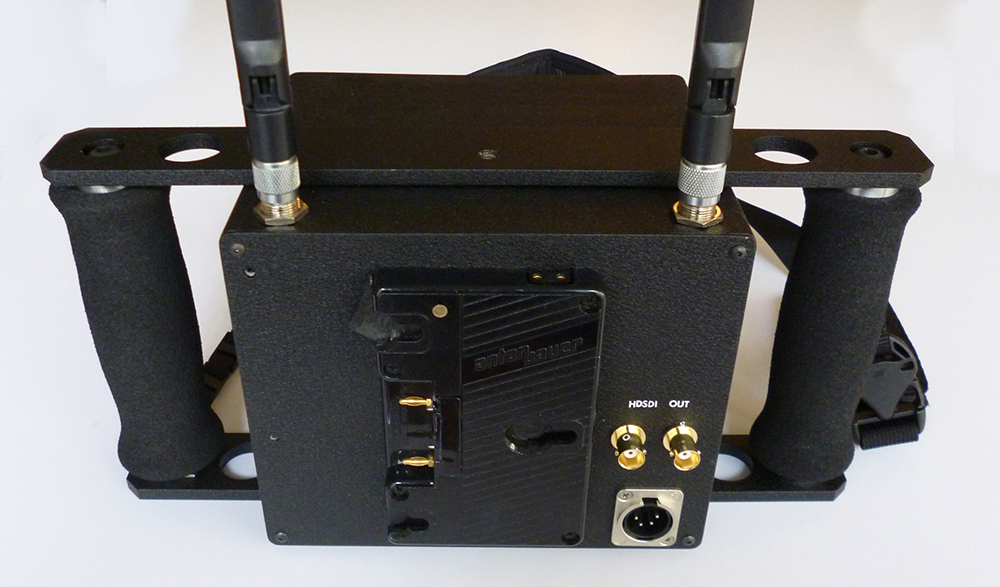

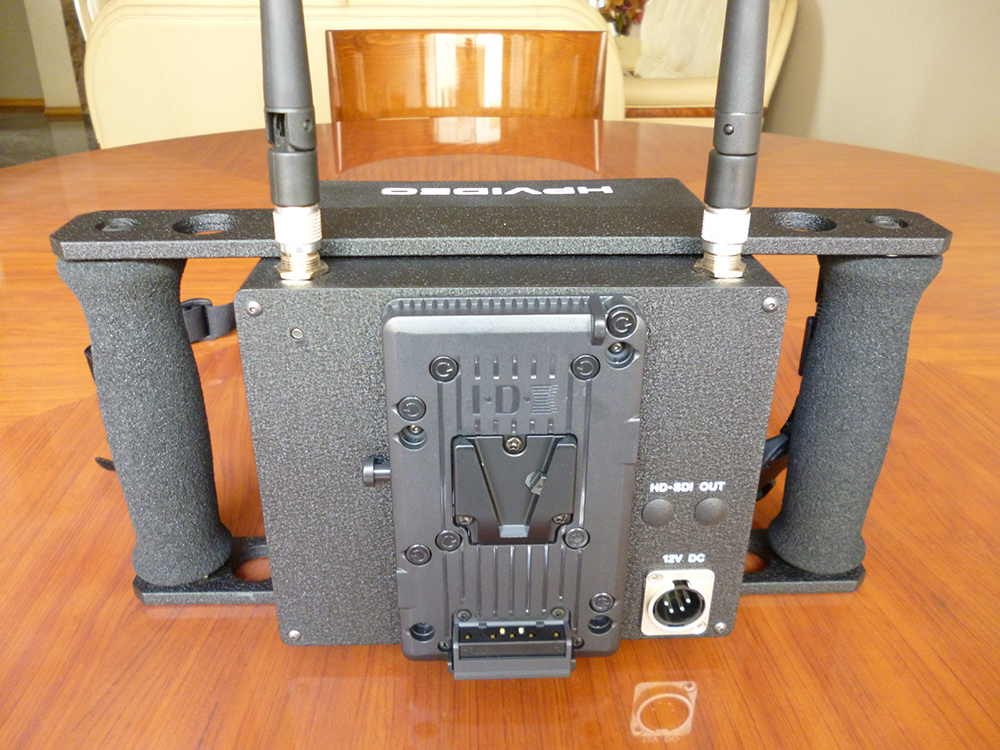

•  BATTERY PLATE: The Wireless Monitor comes Variety of Battery Adapters, SONY "L","M",
   Anton Bauer and V-LOK Plates.

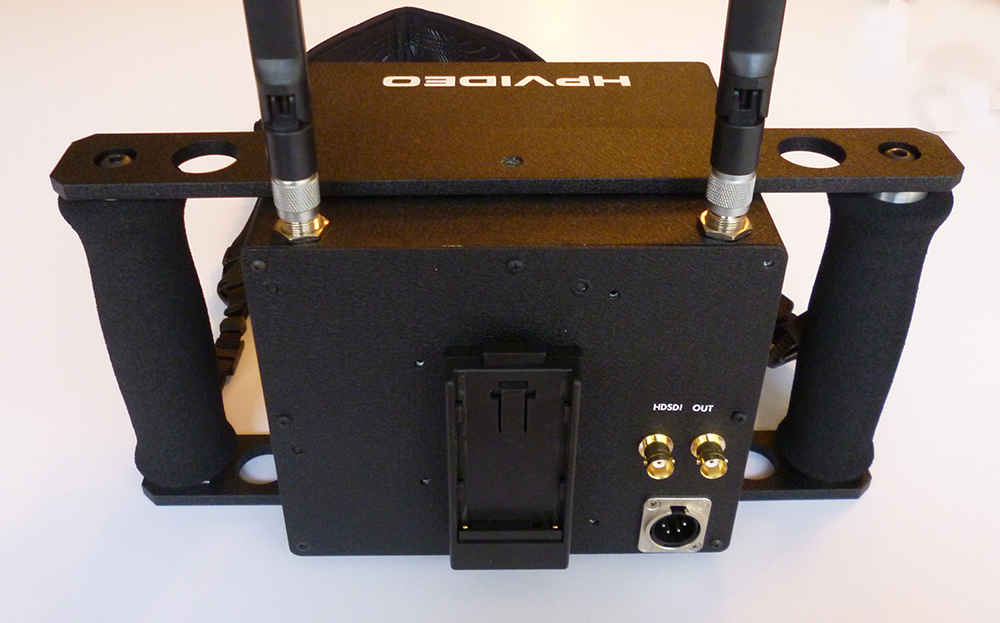

   The wireless monitor with Sony "L" size Battery Plate, Works Up to 1.5 Hours.
•  HD-SDI OUTPUT: 2 x BNC Connectors. Output Signal Formats are:
   480i/59.94, 567i/50, 1080i/60, 1080i/59.94, 1080i/50
   1080p/30, 1080p/29.97, 1080p/25, 1080p/24, 1080p/23.97,
   720p/60, 720p/59.94, 720p/50,1080p/60(Picture only), 1080p/59.94(picture only), 1080p/50(picture only).
   The HD-SDI outputs is COMING SOON.
•  CHANNELS: 10 channels, Automatic select.
•  LATENCY: < 90 millisecond
•  RANGE: 1 Mile Line Of Sight and 1500 Ft in door.
•  MONITOR DIMENSIONS: 7"(17.7mm) X 5.7(14.5mm) X 3.5(9mm),Without Handles
•  This System is a Multi Cast Wireless System.
•  Boot Up time is 6 second, reconnect 2-3 second.

• The Package Includes:

1. HD-SDI Transmitter
2. Handheld Monitor/Receiver
3. 12V power cable for Transmitter, With 4 Pin XLR Connector
4. 12V power cable for Transmitter, With Anton Bauer Connector
5. 4 x 2.5 db antennas
6. Neck Strap For The Monitor
7. 1550 Pelican Case
8.  6 Month Warranty
