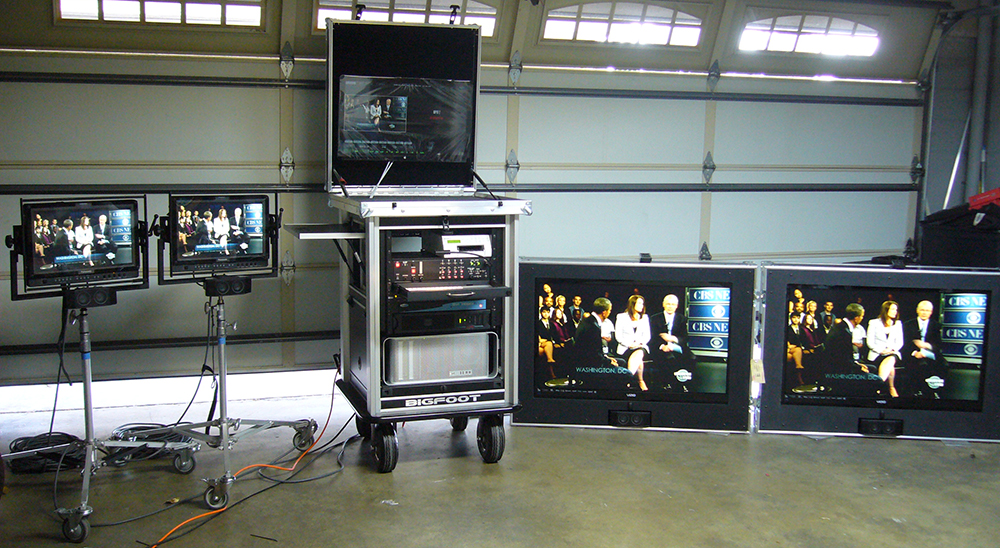

HD-SDI 2 CAMERA SYSTEM INCLUDS:
   1.2 X 17"PANASONIC LCD MONITORS WITH BRACKETS AND HPVIDEO SINGLE CABLE MOD'S
   2.2 X 25" JVC LCD MONITORS WITH BRACKETS AND HPVIDEO SINGLE CABLE MOD'S
   3.5 X 100FT MULTI PIN CABLE
   4.5 X 100FT BNC CABLE (1505F BY BELDEN)
   5.HD VIDEO ASSIST CART WITH QTAKE


 SPECIFICATIONS:

 HD VIDEO ASSIST CART
• AC POWER RANGE FROM 100-240V
• 2 HD-SDI VIDEO INPUTS  (A AND B CAMERAS)
• LOOP THRU OUTPUTS FOR EACH CAMERA INPUTS
• 1 X 3 PIN XLR ANALOGUE AUDIO INPUT
• 2 X ANALOGUE AUDIO AND 3 X HD-SDI DVR AUX OUTPUTS FOR EACH DVR RECORDERS
• 2 X RS232 CONNECTORS FOR EXTERNAL CONTROL
• A,B LIVE AND A,B DVR PLAYBACK OUTPUTS FOR OPERATOR MONITORS
• A AND B NTSC DVR OUTPUTS FOR SONY B/W VIDEO PRINTER OR ANY NTSC MONITOR
• INDEPENDENT ANALOGUE AUDIO OR EMBEDDED AUDIO AND HD-SDI VIDEO RECORDING
• OPERATOR SPEAKER VOLUME CONTROL
• A,B  PLAYBACK AUDIO AND INTERCOM OPERATOR SWITCH
• EXTERNAL SPEAKER VOLUME CONTROL
• 4 X MULI PIN OUTPUT CONNECTORS FOR EXTERNAL MONITORS (WITH HPVIDEO SINGLE CABLE MOD'S)
• A,B  PLAYBACK EXTERNAL AUDIO OR INTERCOM SWITCH
(INDEPENDENT PLAYBACK AND LIVE VIDEO SWITCH'S) FOR EVERY MULTI PIN OUTPUT CONNECTORS FOR EXTERNAL
MONITORS
• ACCEPTS FOUR MODES:
              CHANNEL A LIVE
              CHANNEL A PLAYBACK
              CHANNEL B LIVE
              CHANNEL B PLAYBACK
 •MONITORS (WITH HPVIDEO SINGLE CABLE MOD'S)
• CAN BE DAISY CHAINED
(1 CABLE SUPPORTS 2 MONITORS)
• BUIT-IN FULL INTERCOM SISTEM
• EXTERNAL MIC'S SELECTING WITCH'S
• 12V 20 AMP DC OUTPUT
• BUIL IN ANALOGUE AUDIO OR EMBEDDED AUDIO AND HD-SDI VIDEO RECORDER DECK(FROM FFV)
• SUPPORTED RESOLUTIONS: 1080i/60/59.94/50/24 psf
                        (1920 x 1080/60/59.94/50/2:1
                        Interlace)
                        1080s/23.98/24.00  (PSF)
                        720p/60/59.94/50
                        (1280 x 720/60/59.94/50/Progressive)
                        720p/23.98/24.00
                        NTSC (720 x 486/59.94/2:1 Interlace)
                        PAL (720 x 576/50/2:1 Interlace)
                        SUPPORTS 4:3 or 16:9 ASPECT RATIO
• SONY B/W VIDEO PRINTER
• RACK MOUNT OPERATOR MONITORS
• OPERATORS MONITORS INDIVIDUAL CONTROL (LIVE OR DVR)
• COMPATIBLE INPUT FORMATS FOR OPERATOR MONITORS:

               480p / 59.94 576p/50
               720p / 60/ 59.94/50/30/29.97/25
               1035i / 60/59.94
               1080i / 60/59.94/50
               1080psF / 24/23.98
               1080p / 30/29.97/25/24/23.98
               3G-Formats **
               3G-SDI
               1080p / 60/59.94/50
• AND MORE...
• EXTERNAL MONITORS (WITH HPVIDEO SINGLE CABLE MOD'S)
 • 17"PANASONIC LCD MONITOR
                 MODEL # BT-LH1710W
EVERY EXTERNAL MONITOR MODIFIED WITH BRACKET AND SINGLE CABLE MOD'S
                          (MONITOR POWER,INTERCOM MIC,SPEAKER AND HD-SDI VIDEO)
 • 25'' PANASONIC LCD MONITOR
                 MODEL # BT-LH2550
EVERY EXTERNAL MONITOR MODIFIET WITH BRACKET AND SINGLE CABLE MOD'S
                          (MONITOR POWER,INTERCOM MIC,SPEAKER AND HD-SDI VIDEO)
 • MULTI PIN CABLE
                 100FT HIGH FLEX PRECISION MULTI PIN CABLE
                 (MONITOR POWER,INTERCOM MIC,SPEAKER AUDIO AND HD-SDI VIDEO)
                 BY USING BARRELS YOU CAN EXTEND UP TO 200FT
