HP1007 (Ver. 3)
HPVIDEO HDSDI WIRELESS HANDHELD MONITOR AND TRANSMITTER SYSTEM (Ver. 3)
Price $5000.00
SPECIFICATIONS:

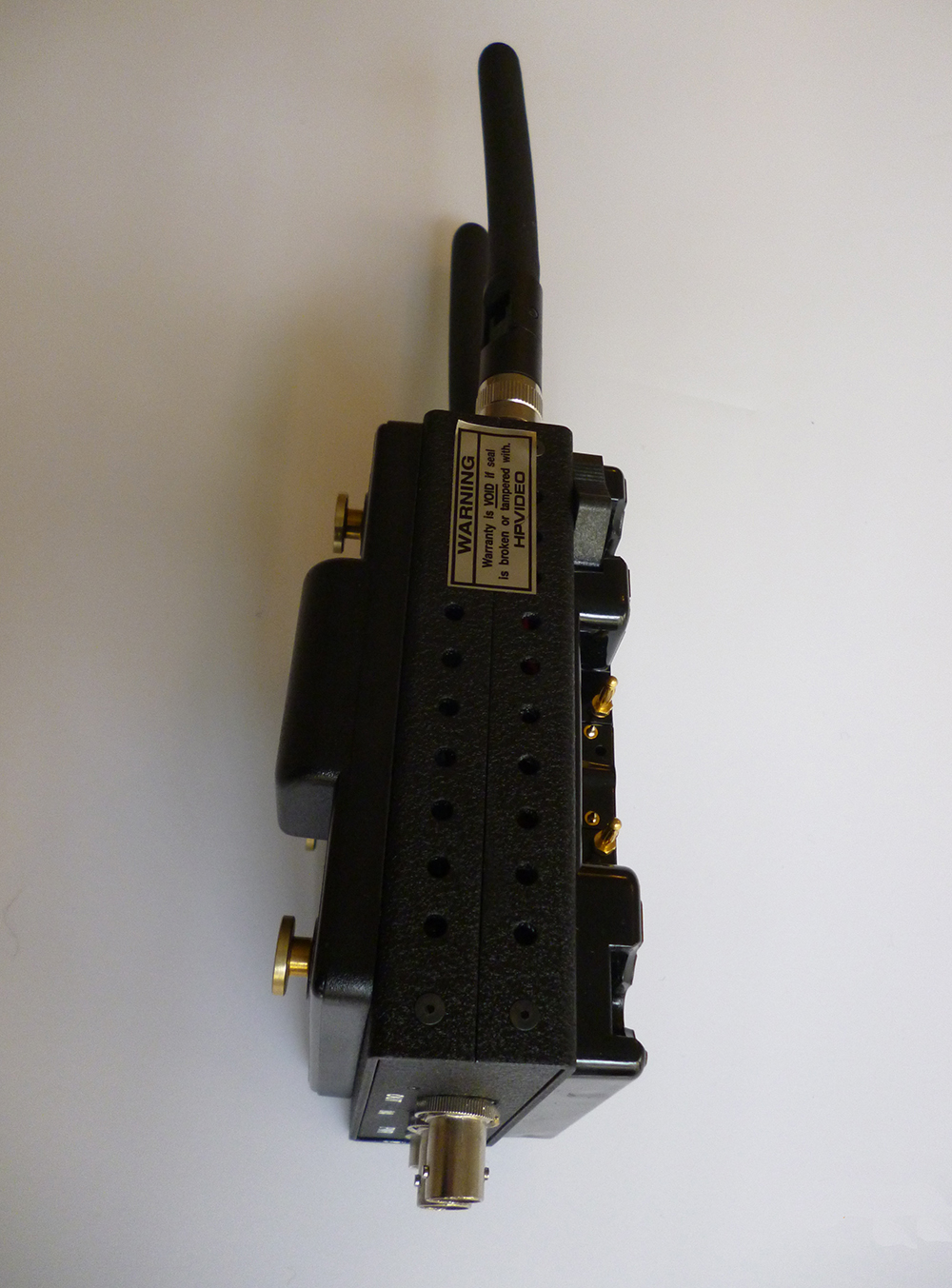

HD-SDI TRANSMITTER
• HD-SDI INPUT: Auto detects 3G-SDI, HD-SDI or SDI
• INPUT FORMATS: 480i/59.94, 567i/50
1080i/60,1080i/59.94,1080i/50,1080psf/30,1080psf/29.97,1080psf/25,1080psf/24
1080psf/23.98, 1080p/30,1080p/29.97,1080p/25,1080p/24,1080p/23.97,720p/60,720p/59.94,720p/50
1080p/60(Picture only), 1080p/59.94(picture only), 1080p/50(picture only)
• HD-SDI OUTPUT: 3G/HD/SD-SDI Active Loop-Through Output
• ANTENNA INPUTS: 2 X TNC CONNECTORS
• ANTENNAS: 2 x 2.5 Db Antennas
• POWER INPUT: 6 Pin, Mail HIROSE Connector (LIKE MODULUS2000/3000).
Modulus2000/3000 power cables works with it.Input DC voltage is 5v to 26v,600mA
HIROSE pin out: Pin #1 Ground
Pin #3 +12v input
Pin #5 +24v input
• UNIT DIMENSIONS: 3.15"(80mm) x 3.9"(100mm) x 1.5"(38mm)
• WEIGHT: 13.7oz (390g)
• LATENCY: < 90 millisecond
• RANGE: 1 Mile Line Of Sight and 1500 Ft in door.
• CHANNELS: 10 channels, Automatic select.
• Male and Female Anton Bauer Battery Plats

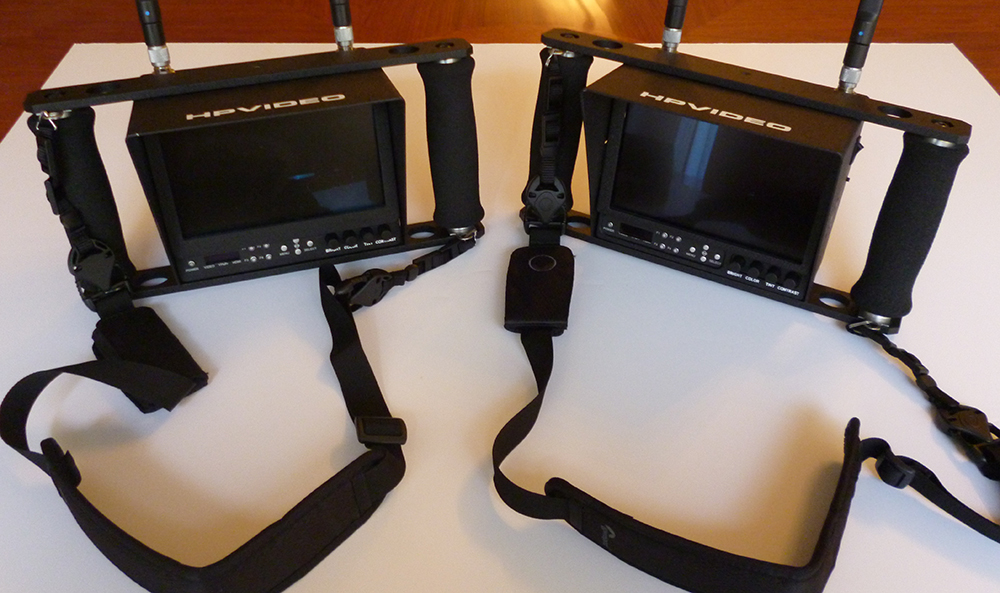

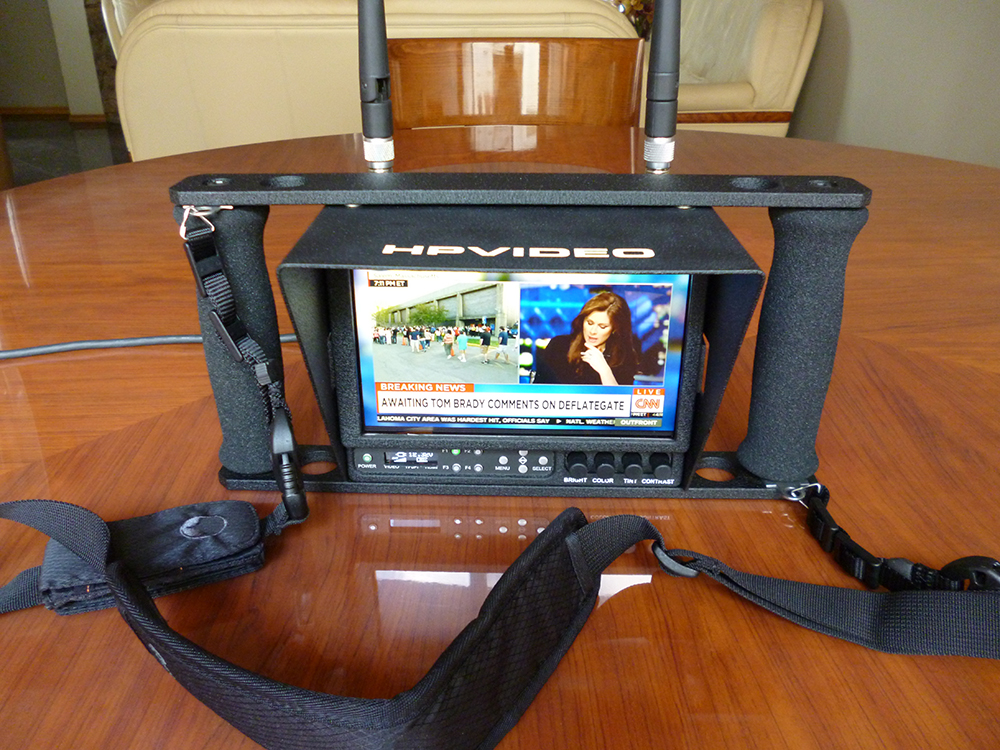

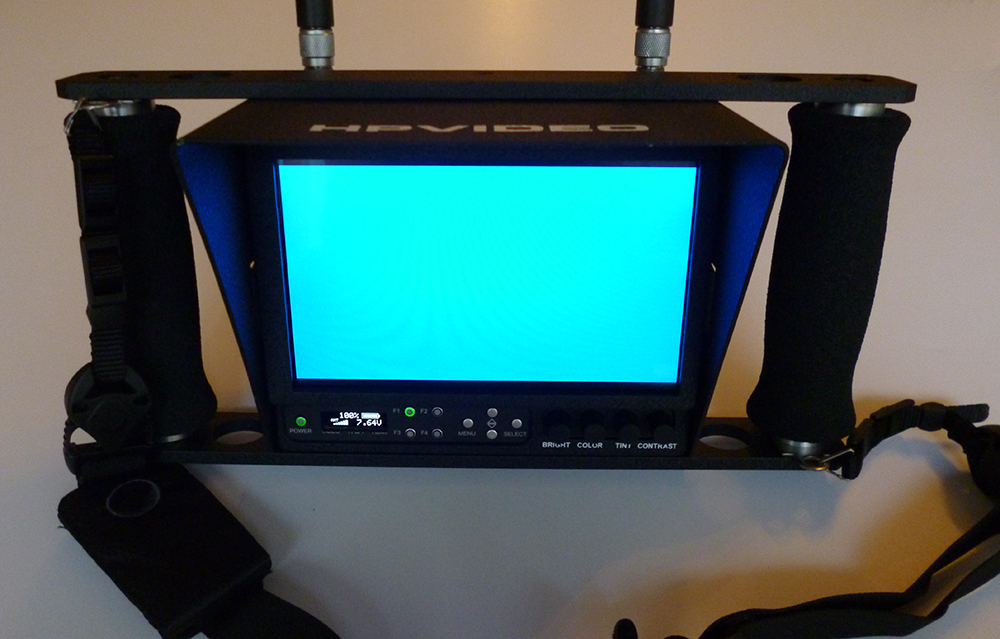

WIRELESS HANDHELD MONITOR

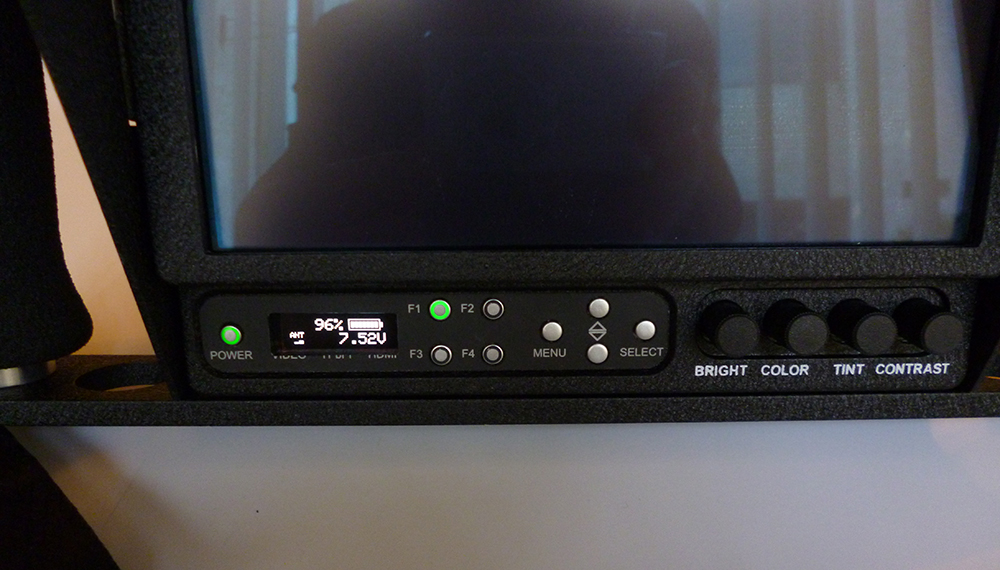

• MONITOR: 7" LCD Screen
High resolution 800 x 480 LCD panel
Manual Gamma Adjustment
Adjustable Back light
Image Flip
Variety of Markers, including user-adjustable)
False Color On/Off
Peaking Filter On/Off
RGB Check Field / Field Detect
15:9, 16:9, 4:3, Pixel-to-Pixel modes
4 user-configurable function buttons
Scratch Resistant Protective Screen
RGB gain and bias control
• ANTENNA INPUTS: TNC CONNECTORS
• POWER INPUT: 4 PIN XLR connector. Input voltage is 9v to 38v DC, 1.7Amp.
Auto switching from DC input to Battery power.

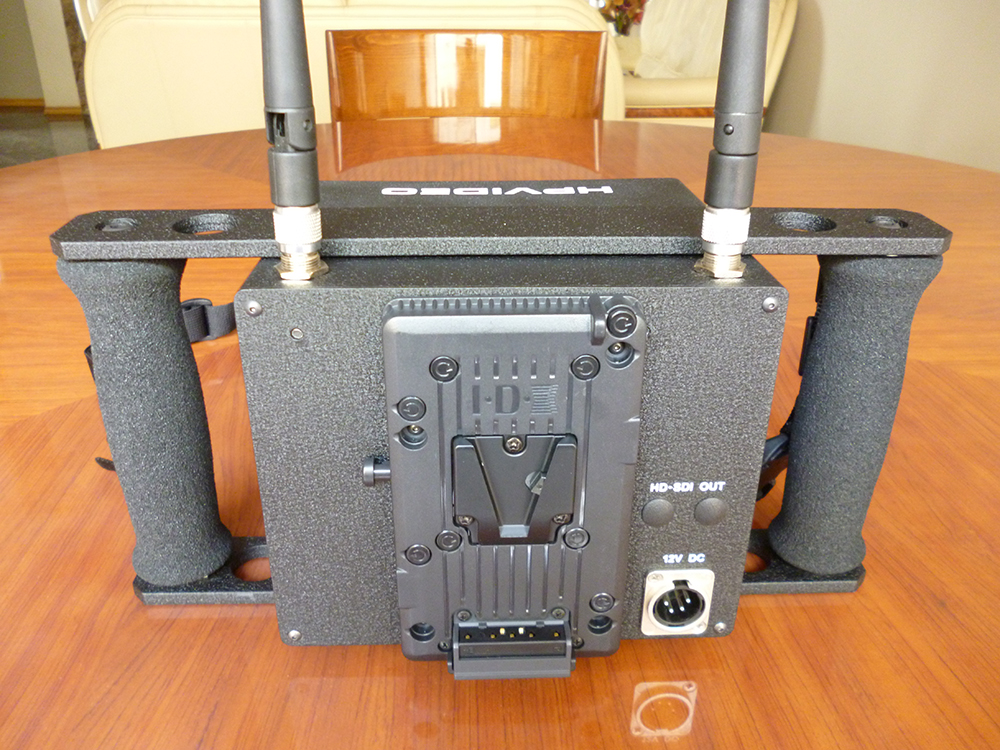

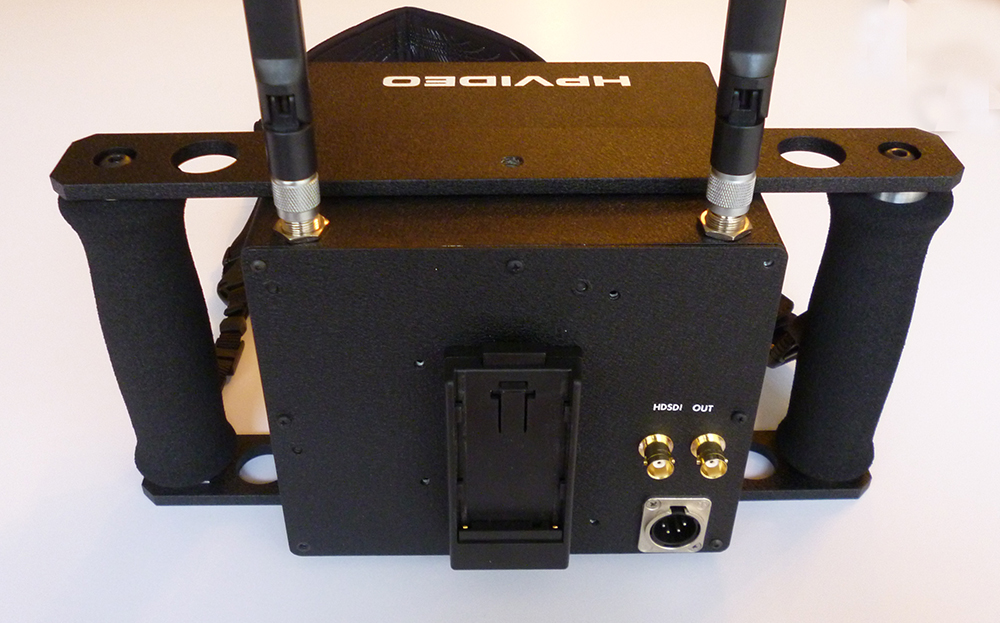

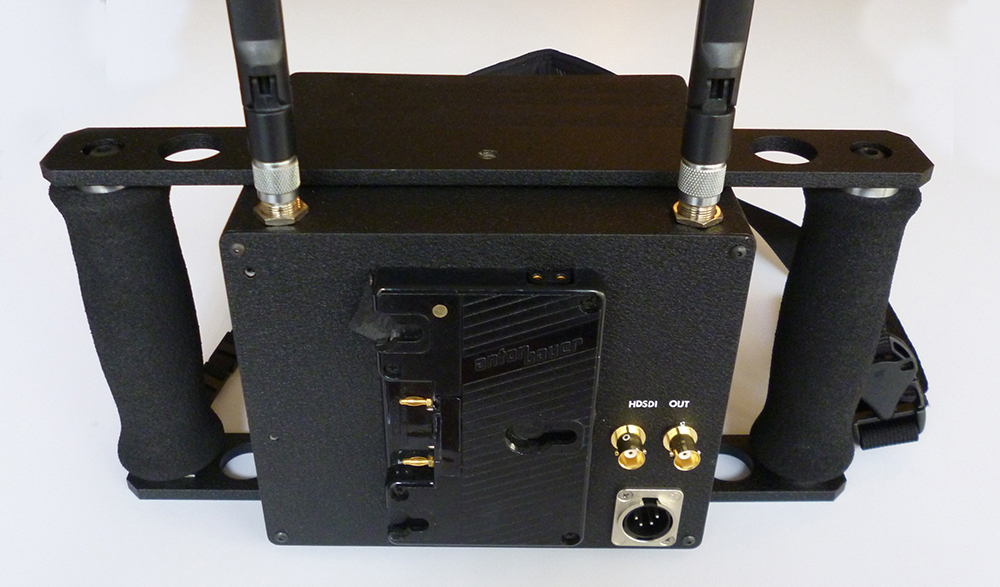

• BATTERY PLATE: The Wireless Monitor comes Variety of Battery Adapters, SONY "L","M",
Anton Bauer and V-LOK Plates.
The wireless monitor with Sony "L" size Battery Plate, Works Up to 1.5 Hours.
• HD-SDI OUTPUT: 2 x BNC Connectors. Output Signal Formats are:
480i/59.94, 567i/50, 1080i/60, 1080i/59.94, 1080i/50
1080p/30, 1080p/29.97, 1080p/25, 1080p/24, 1080p/23.97,
720p/60, 720p/59.94, 720p/50,1080p/60(Picture only), 1080p/59.94(picture only), 1080p/50(picture only).
The HD-SDI outputs is COMING SOON.
• CHANNELS: 10 channels, Automatic select.
• LATENCY: < 90 millisecond
• RANGE: 1 Mile Line Of Sight and 1500 Ft in door.
• MONITOR DIMENSIONS: 7"(17.7mm) X 5.7(14.5mm) X 3.5(9mm),Without Handles
• This System is a Multi Cast Wireless System.
• Boot Up time is 6 second, reconnect 2-3 second.

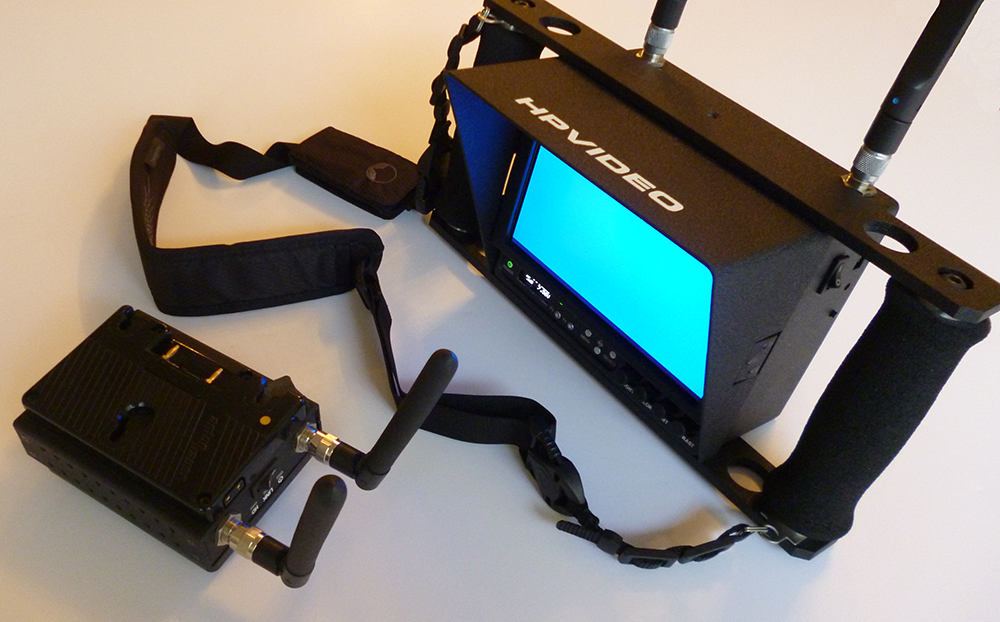

• The Package Includes:
1. HD-SDI Transmitter
2. Handheld Monitor/Receiver
3. 12V power cable for Transmitter, With 4 Pin XLR Connector
4. 12V power cable for Transmitter, With Anton Bauer Connector
5. 4 x 2.5 db antennas
6. Neck Strap For The Monitor
7. 1550 Pelican Case
8. 6 Month Warranty
